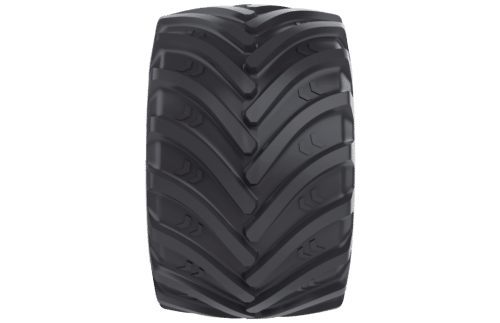

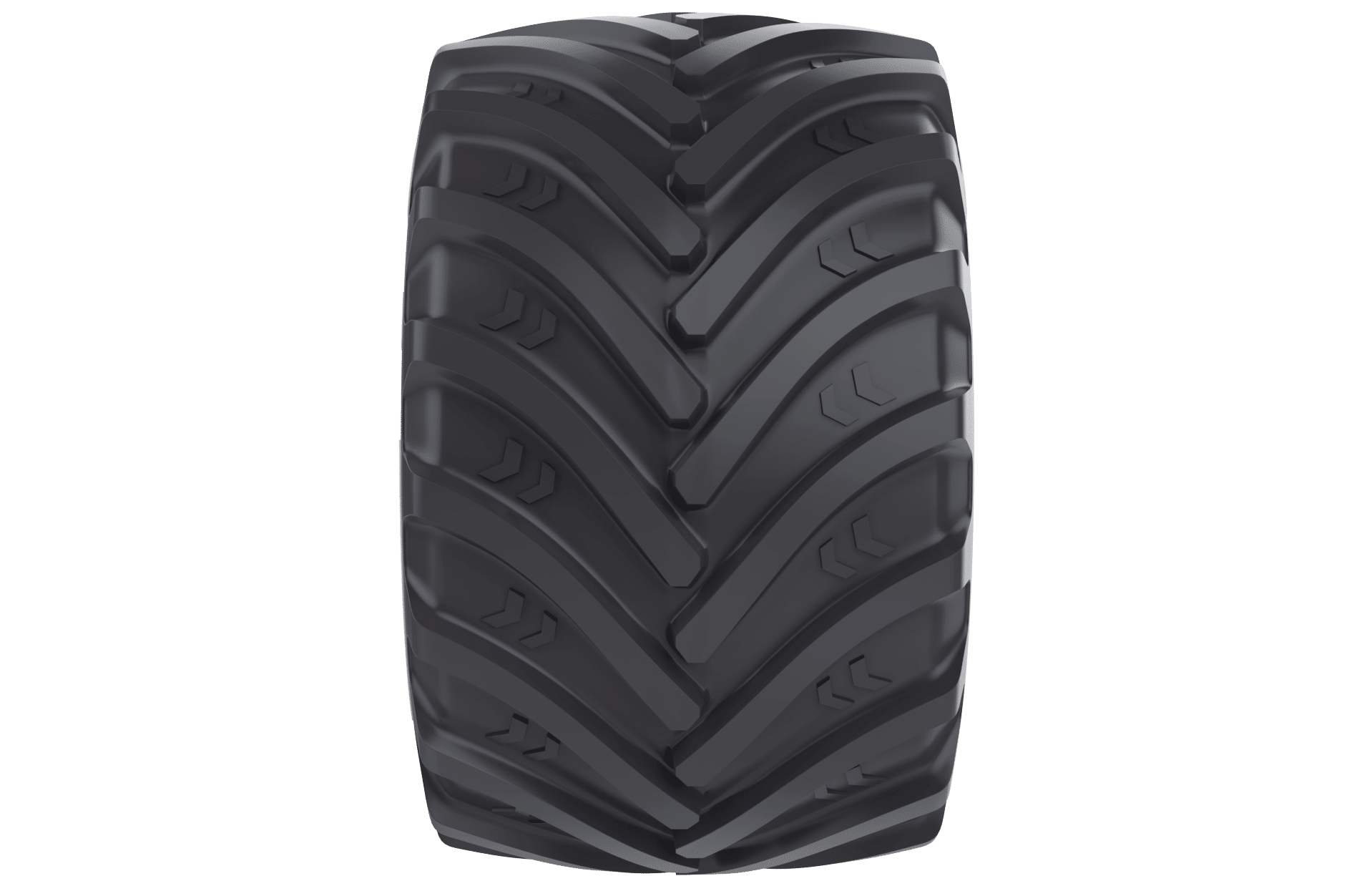

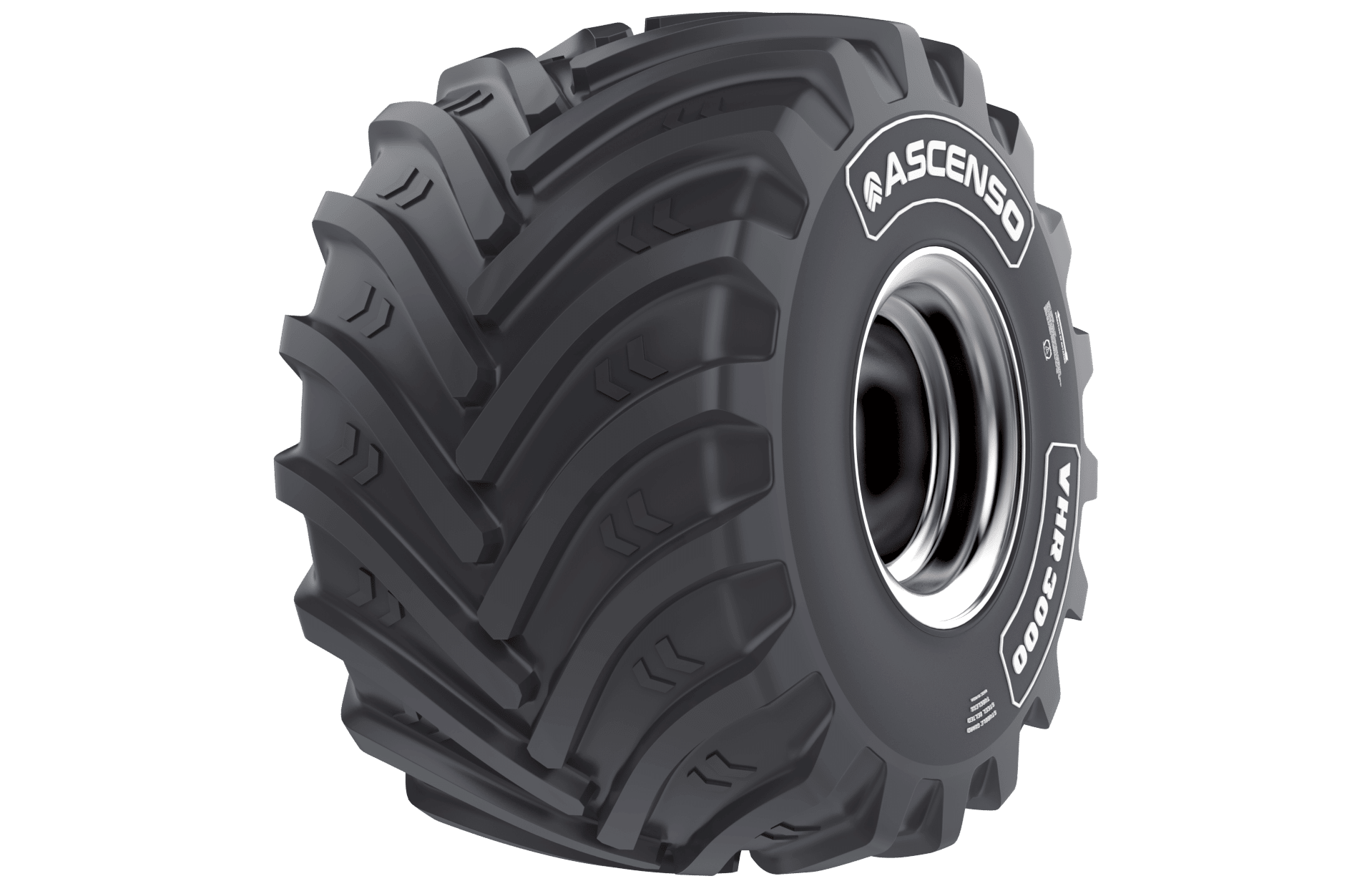

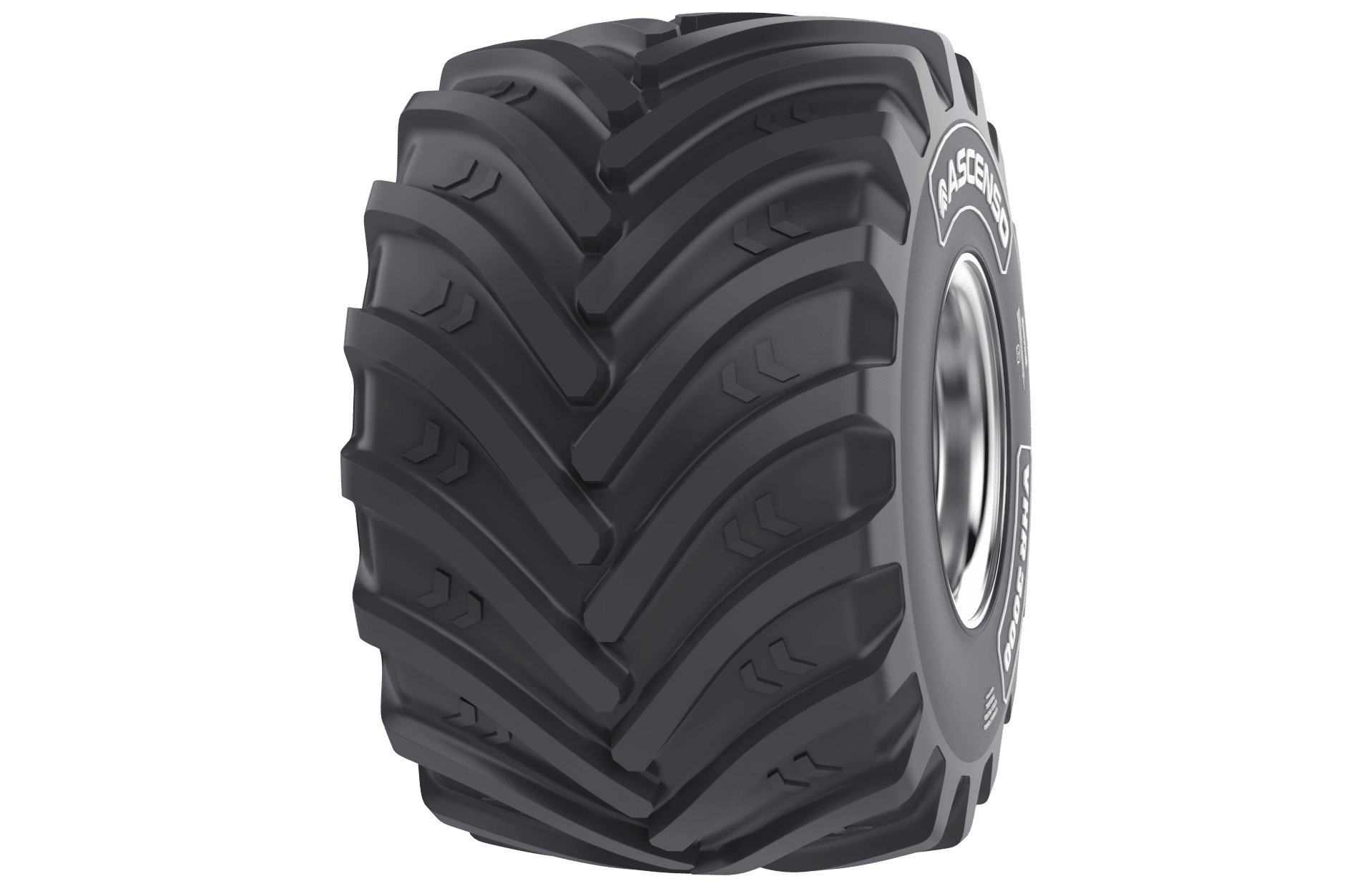

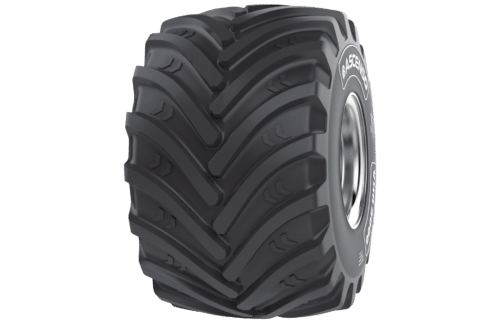

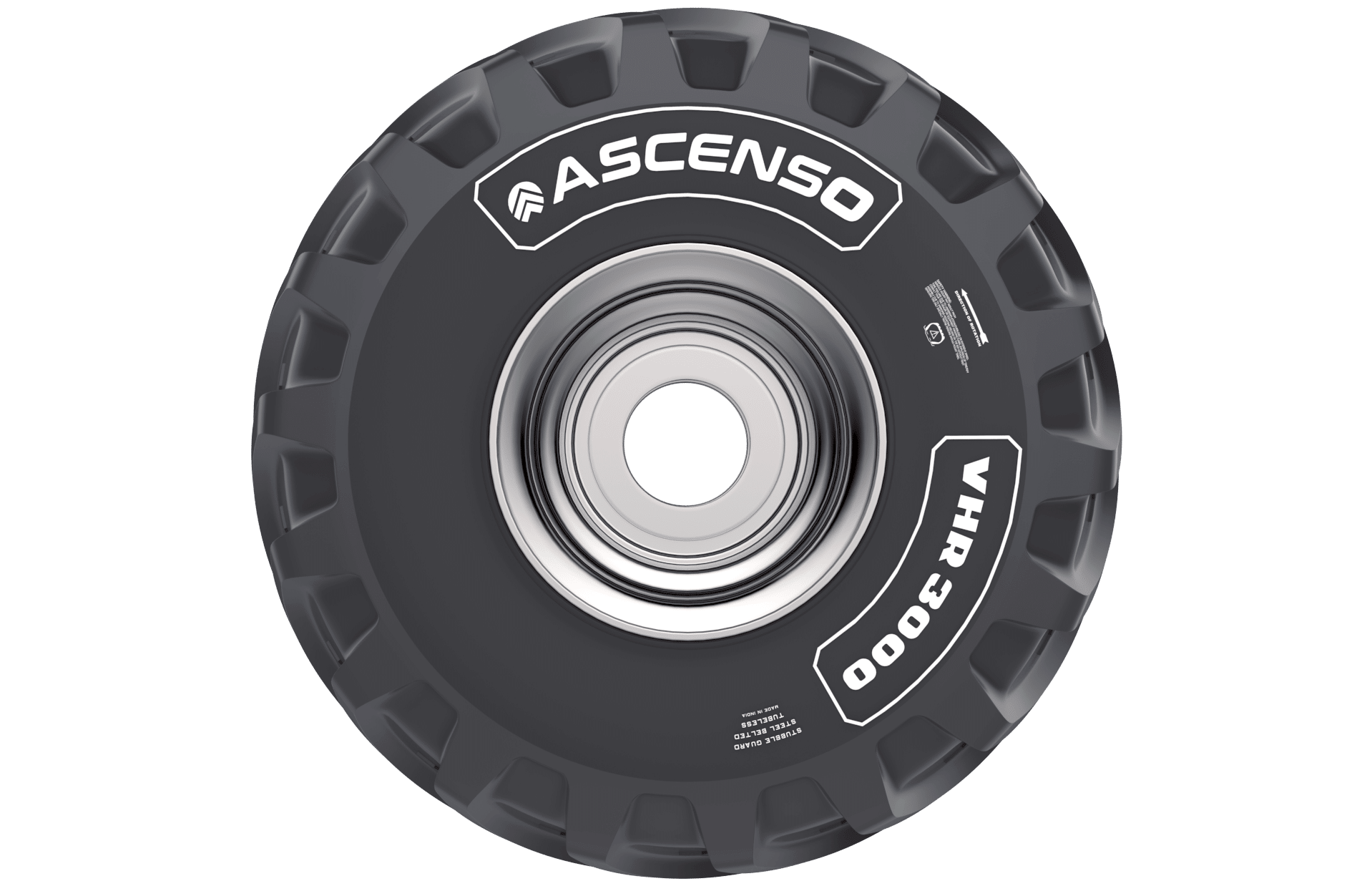

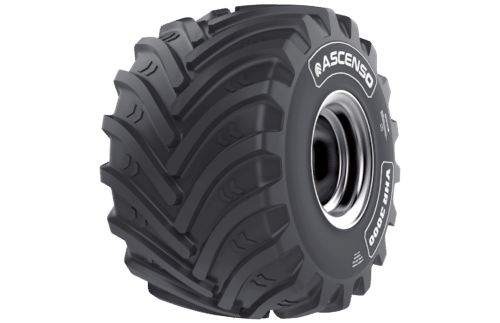

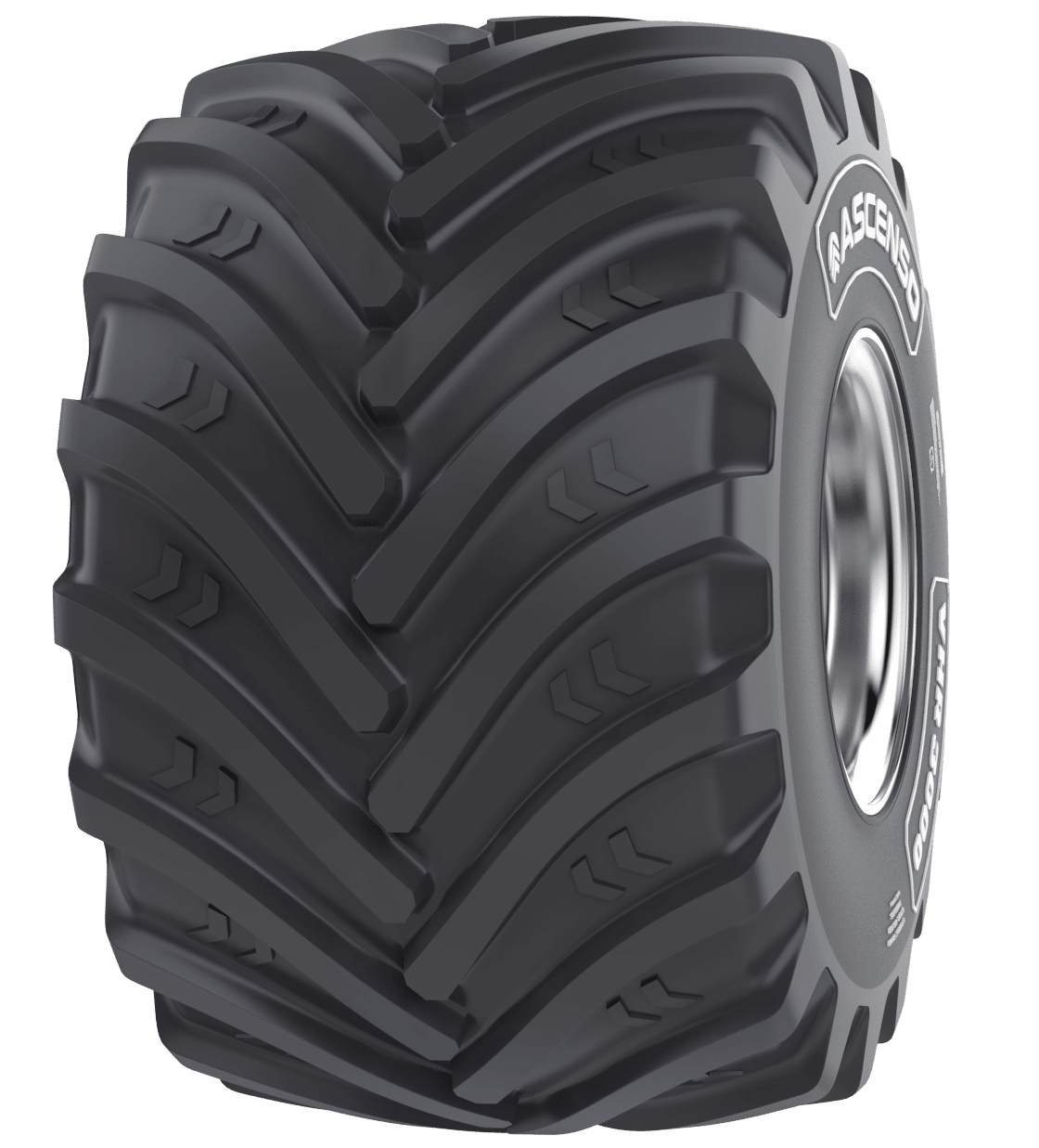

VHR 3000
R-1 / R-1W
TL
- Designed to bear heavy loads, 40% more than standard radial tire. Due to the greater flexion capacity of the carcass, the pressure is distributed to the ground uniformly.
- Excellent for frequent loading and unloading in cyclic field operation (CFO), ensuring better durability and reliability than standard tyres.
- Optimized dual-angle lug shape improves traction and stability
- Strong shoulders with higher draft angle and base radius of lug can withstand heavy loads at low inflation pressure.
- Excellent Self-Cleaning properties.
- Longer Tire Life and defense against stubble which provides better protection on field.
- Maximize the load capacity of the tire at low inflation pressure, preserving the soil.
- SB offers excellent puncture resistance and optimized load distribution.
VHR 3000
| SKU Code | Size | ALT Size | LI/SI | Type | Tread Depth (32 nds) | Preferred Rim | Wt (lbs) | OD (inches) | SW (inches) | RC (inches) | SLR (inches) | Max Load at 43 mph (Road Transport) | psi | Max Load at 31 mph (Harvester Application) | CFO Up to 30 Cyc. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3001100022 | VF 1000/50R25 CFO (SB SG) * | - | 184 A8/D | TL | 58 | 36.0TH | 787 | 64 | 40 | 193 | 29 | 18190 | 35 | 19820 | 22510 |
| 3001100023 | VF 750/50R26 CFO (SB SG) * | - | 169 A8/D | TL | 50 | DW25B | 424 | 56 | 29 | 166 | 25 | 11720 | 35 | 12780 | 14490 |
| 3001100029 | VF 750/65R26 CFO (SB SG) * | - | 180 A8 | TL | 71 | DW27B | 664 | 64 | 30 | 192 | 29 | 16170 | 41 | 16170 | 20000 |
| 3001100015 | VF 800/65R32 CFO (SB SG) * | - | 183 A8 | TL | 73 | DW28B | 796 | 73 | 31 | 218 | 33 | - | 35 | 17690 | 21870 |
| 3001100018 | VF 1050/50R32 CFO (SB SG) * | - | 198 A8/D | TL | 58 | 36.00VA(SDC) | 959 | 73 | 41 | 219 | 33 | 26670 | 52 | 29070 | 33000 |
| 3001100028 | VF 580/80R34 CFO (SB SG) * | - | 178 A8 | TL | 73 | DW20B | 632 | 71 | 23 | 211 | 32 | - | 41 | 15150 | 18740 |
| 3001100020 | VF 800/55R46 CFO (SB SG) * | - | 190 A8/D | TL | 77 | DW28B | 948 | 81 | 31 | 243 | 38 | 21410 | 44 | 23350 | 26500 |
| 3001100026DF | VF 620/70R42 CFO (SB, SG) | - | 172 A8 | TL | 68.0 | DW21B | 622.2 | 76.2 | 24.3 | 227.8 | 35.1 | - | 23 | 23350 | 26500 |
| 3001100027DF | VF 710/60R30 CFO (SB, SG) | - | 171 D/171 A8 | TL | 69.3 | DW25B | 527.4 | 63.5 | 27.9 | 190.0 | 28.8 | 12420 | 29 | 13550 | 15370 |
| 3001100016DF | VF 900/60R32 CFO (SB, SG) | - | 191 A8 | TL | 73.1 | DW30B | 932.5 | 74.5 | 34.7 | 222.9 | 33.5 | - | 41 | 22030 | 27250 |
