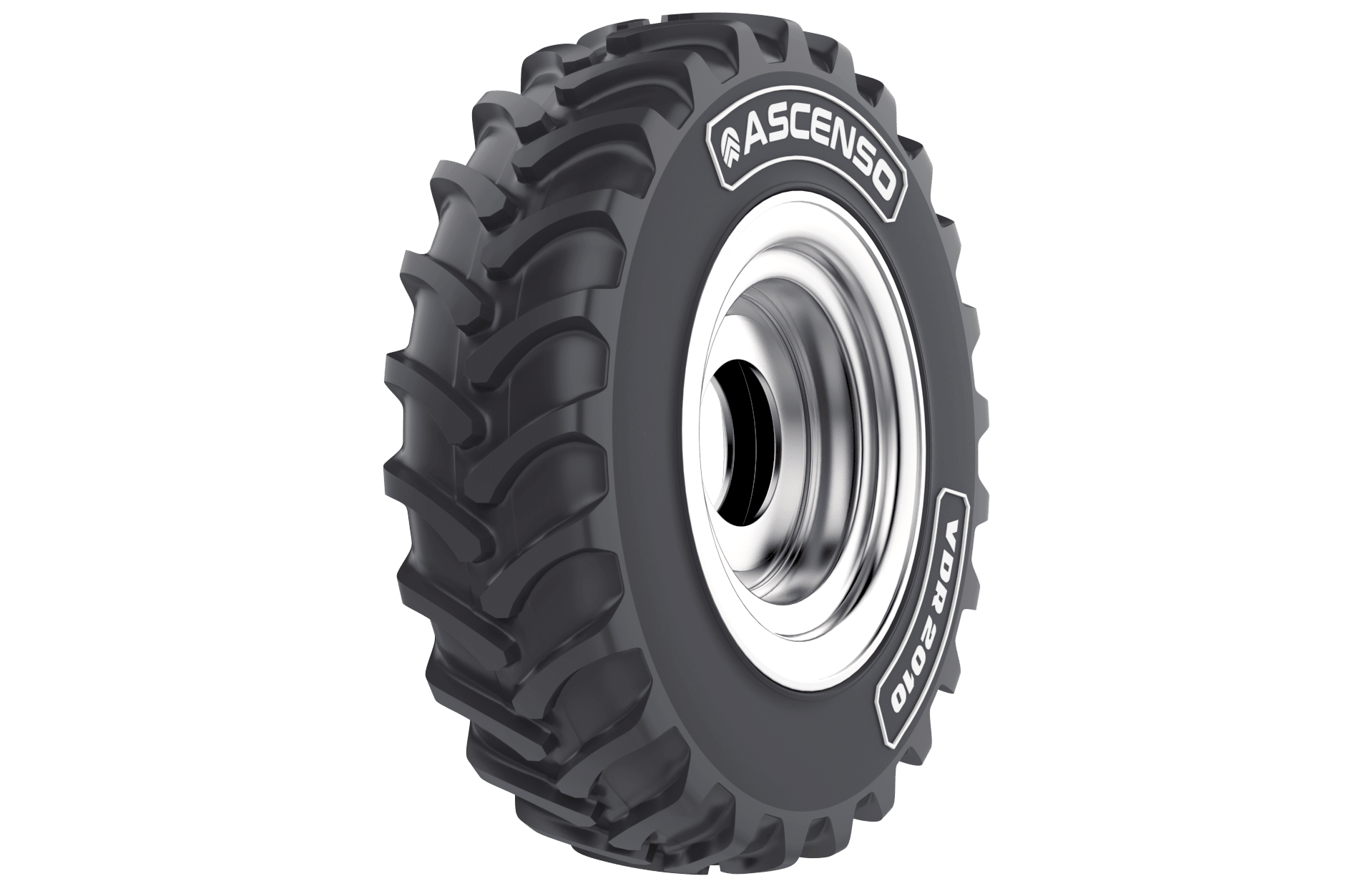

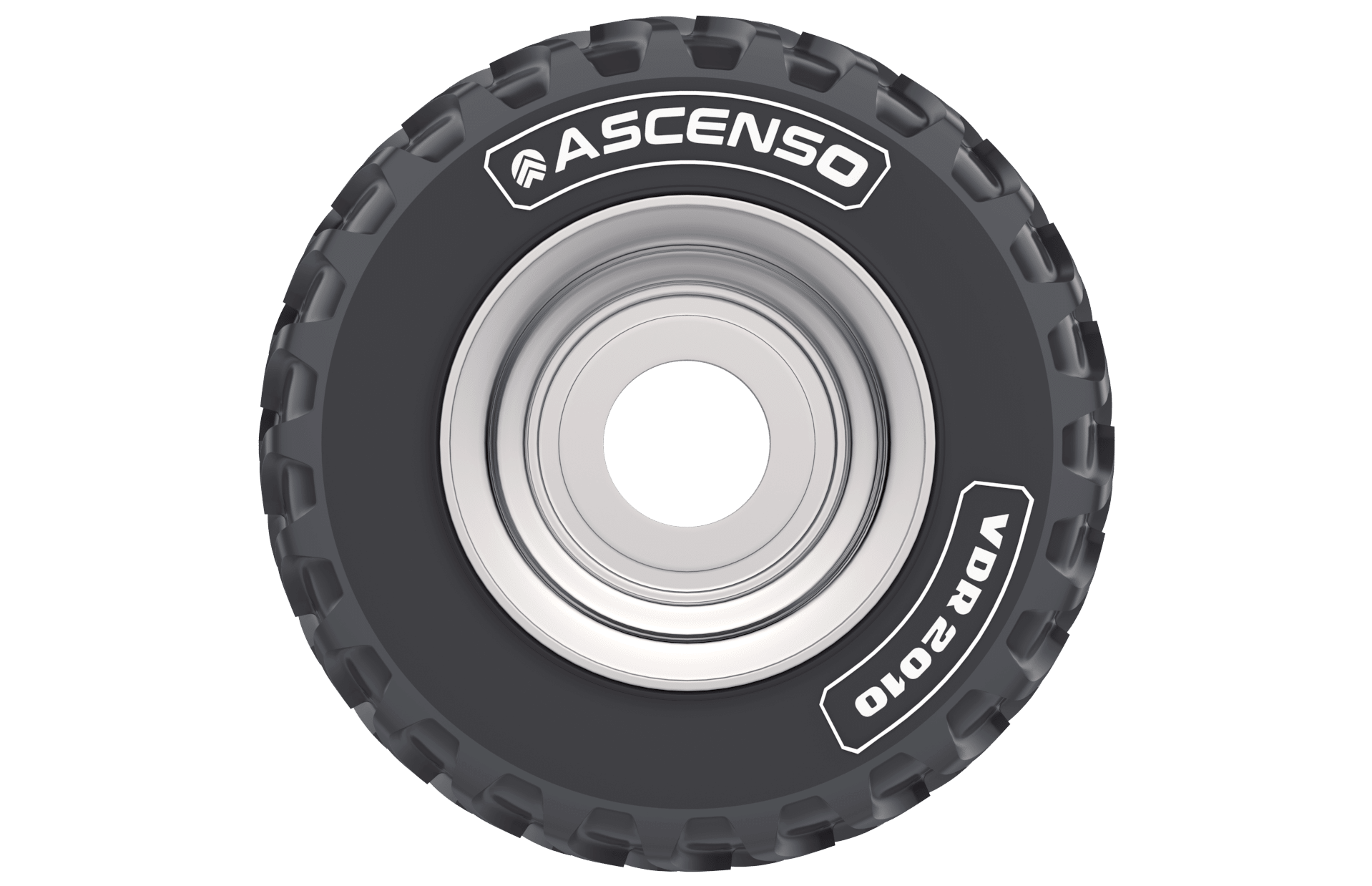

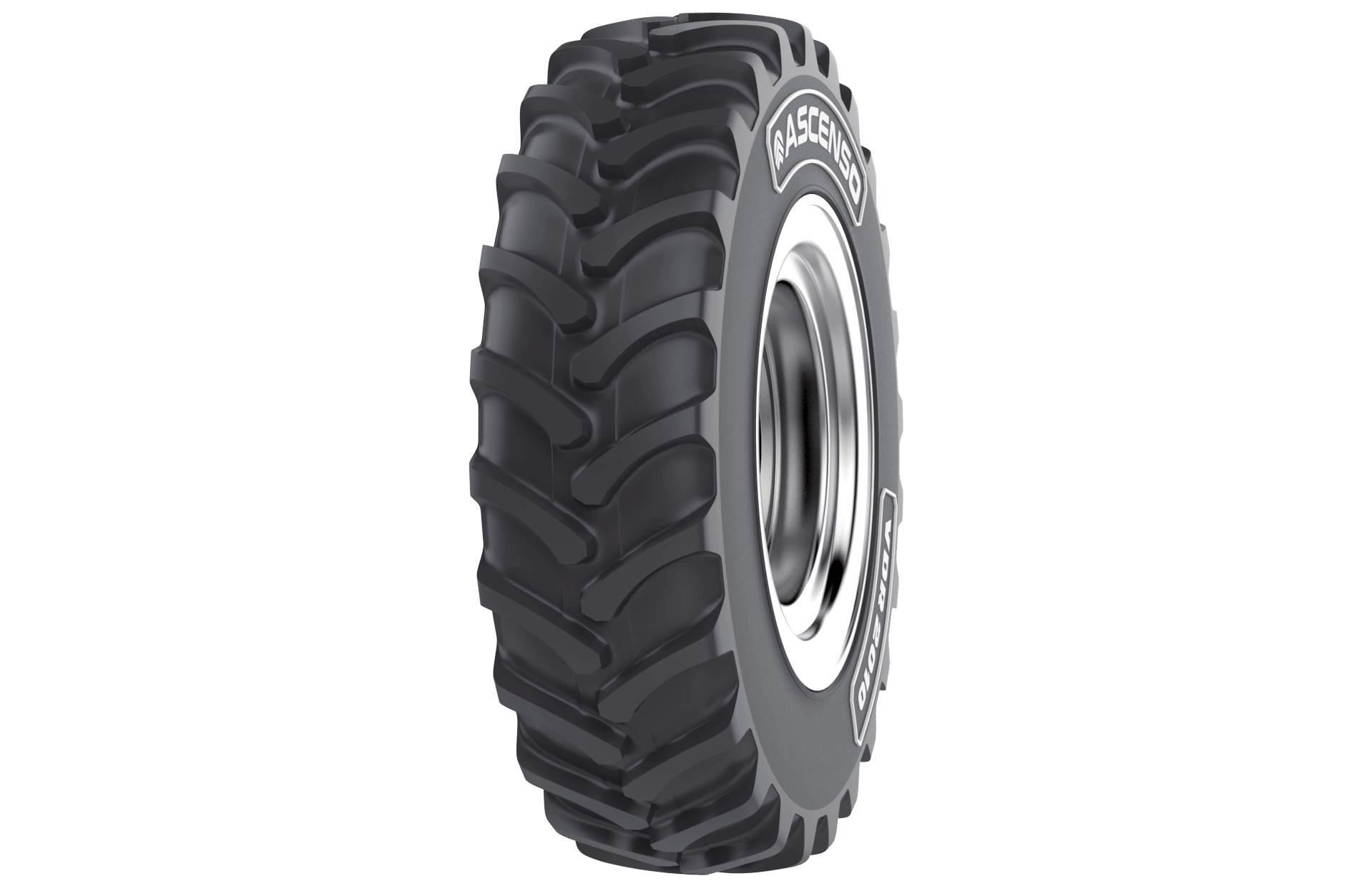

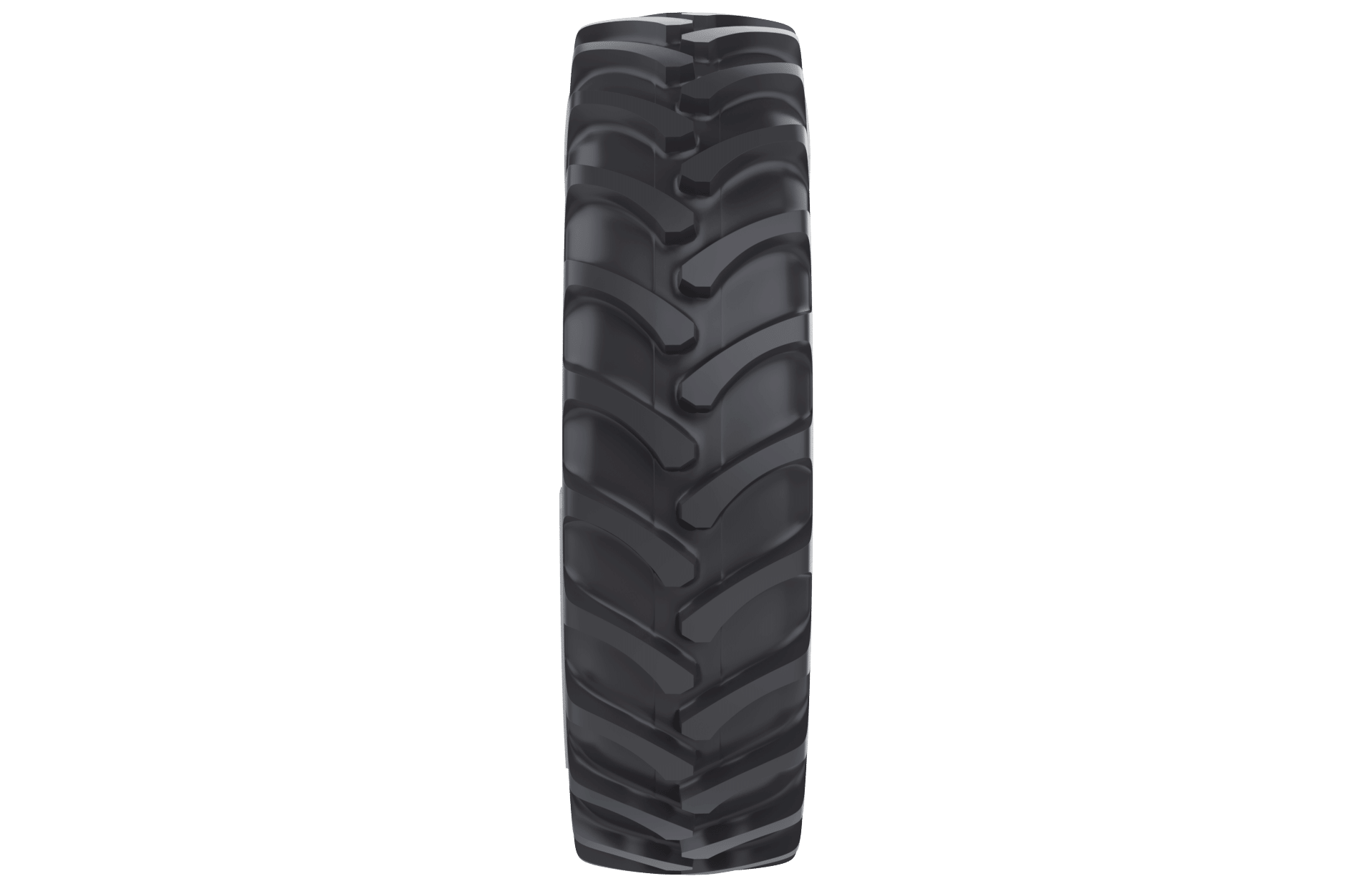

VDR 2010
R1
TL
Construction
Radial
Machinery
Tractor
Application
Agriculture
Advanced VF Technology
- Designed to bear heavy loads, 40% more than a standard radial tire
Flatter Tread Radius with Wider & Longer Footprint
- Reduce soil stress, compaction, and improve yields
Optimized Lug Base Angle Tie Bar at Center
- Minimizes lug shuffling in operation
- Strong lug base
SSR Compound (Special Stubble Resistant)
- Longer tire life and defense against stubble, which provides better protection on the field
23-Degree Lug Angle with Optimized Lug Spacing
- Outstanding traction with a minimum amount of slip
- Excellent self-cleaning
- Ideally suited for hard soil
Higher Number of Lug and Land Percentage with Optimized Overlap of Lugs
- Better roadability
Optimum Off Shoulder Height with Durable Steel Belts
- For better vertical stability
- SB offers excellent puncture resistance and optimized load distribution
VDR 2010
| SKU CODE | Size | Tire Type | Rim | Alt Rim | Unloaded Dimension | SLR | RC | LSI | NSD (32nds) | Weight (LBS) | psi | Max Load (lbs) at 6 mph | Max Load (lbs) at 40 mph | |
| SW | OD | |||||||||||||
| mm | mm | mm | mm | |||||||||||
| in | in | in | in | |||||||||||
| 3001040332DF | VF 420/85R34 SGSB | TL | DW15L | DW14L | 418 | 1578 | 726 | 4739 | 159D | 76 | 308.9 | 34.8 | 10590 | 9640 |
| 16.5 | 62.1 | 28.6 | 186.5 | |||||||||||
Note:
VF – Very High Flexion
SB – Steel Belted
SG – Stubble Guard
