Close Shoulder Drive Tire – Reliable Traction for Long Haul Performance
Built for Strength, Traction & Durability
The TLDH01 Close Shoulder Drive Tire is designed for drivers and fleet operators who demand maximum traction, long tread life, and dependable performance on long-distance routes. Engineered for drive axle positions, this tire delivers strong grip, stability, and durability in both wet and dry conditions.Key Features & Benefits
Strong Traction in All Conditions
Four zig-zag tread grooves provide enhanced grip on the road, helping improve control and safety whether driving in wet or dry environments.
Built to Resist Damage
An optimized tread block design helps prevent stone retention, reducing the risk of casing damage and extending the life of the tire.
Stable & Smooth Ride
The closed shoulder design increases stability, reduces irregular wear, and delivers a more comfortable driving experience on highways.
Cooler Running for Longer Life
Reinforced shoulder lugs help minimize wandering and reduce heat buildup, improving overall durability during long hauls.
Ideal Applications
- Long-haul trucking
- Highway driving
- Drive axle positions
- Fleet and owner-operator use

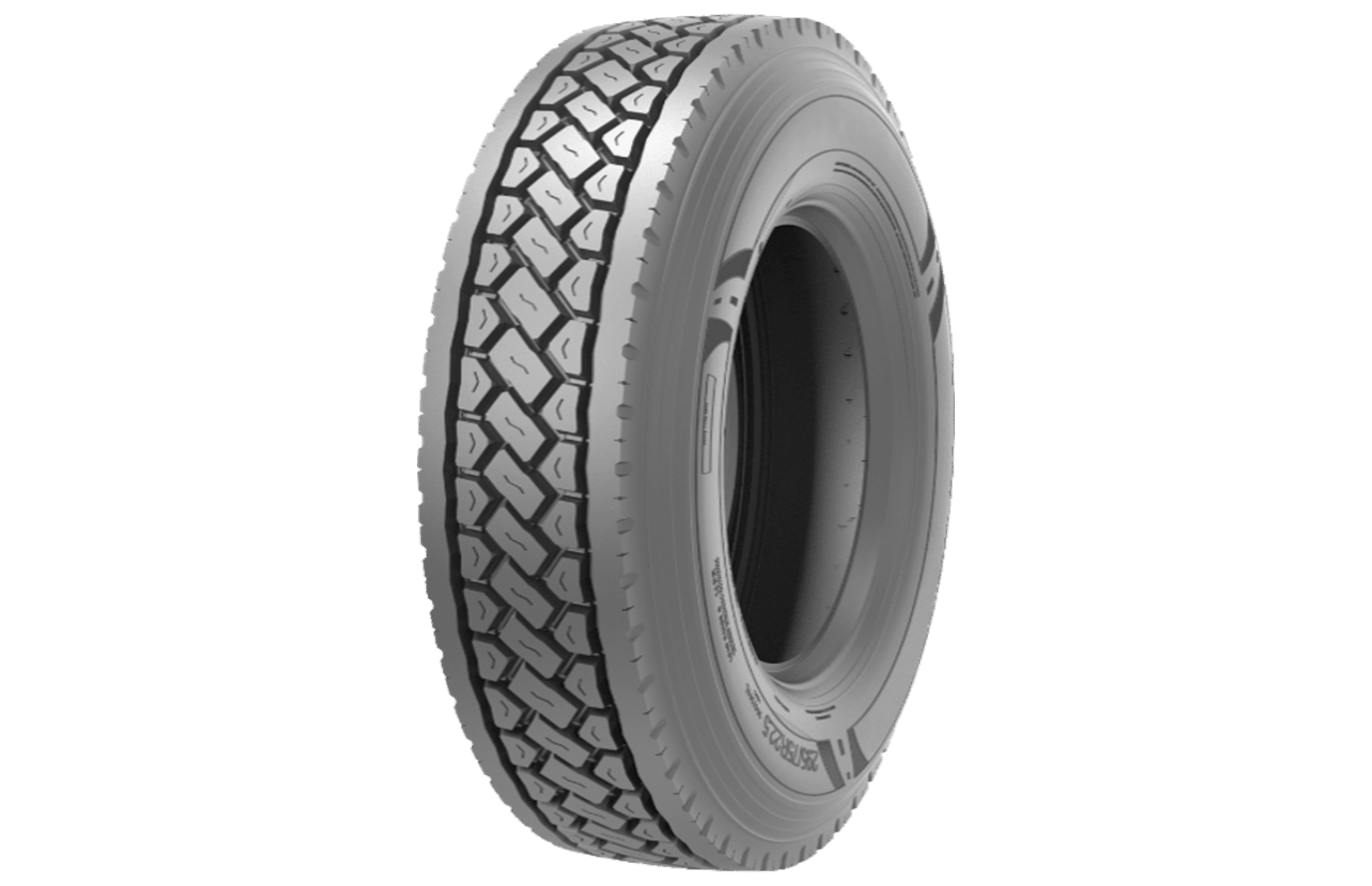

TLDH01
| SKU Code | Size | Ply/* | Service Index | Tread Depth (32 nds) | Standard Rim | Overall Diameter | Section Width | Max Load Capacity at Cold Inflation Pressure |
|||
| in | in | ||||||||||
| Single | Dual | ||||||||||
| lbs | psi | lbs | psi | ||||||||
| 1345718ISA | 11R22.5 | H/16 | 146/143L | 26 | 8.25 | 41.9 | 11 | 6610 | 120 | 6005 | 120 |
| 1345715ISA | 295/75R22.5 | H/16 | 146/143L | 26 | 9 | 40.2 | 11.7 | 6610 | 120 | 6005 | 120 |
| 1345717ISA | 11R24.5 | H/16 | 149/146L | 26 | 8.25 | 43.9 | 11 | 7160 | 120 | 6610 | 120 |
