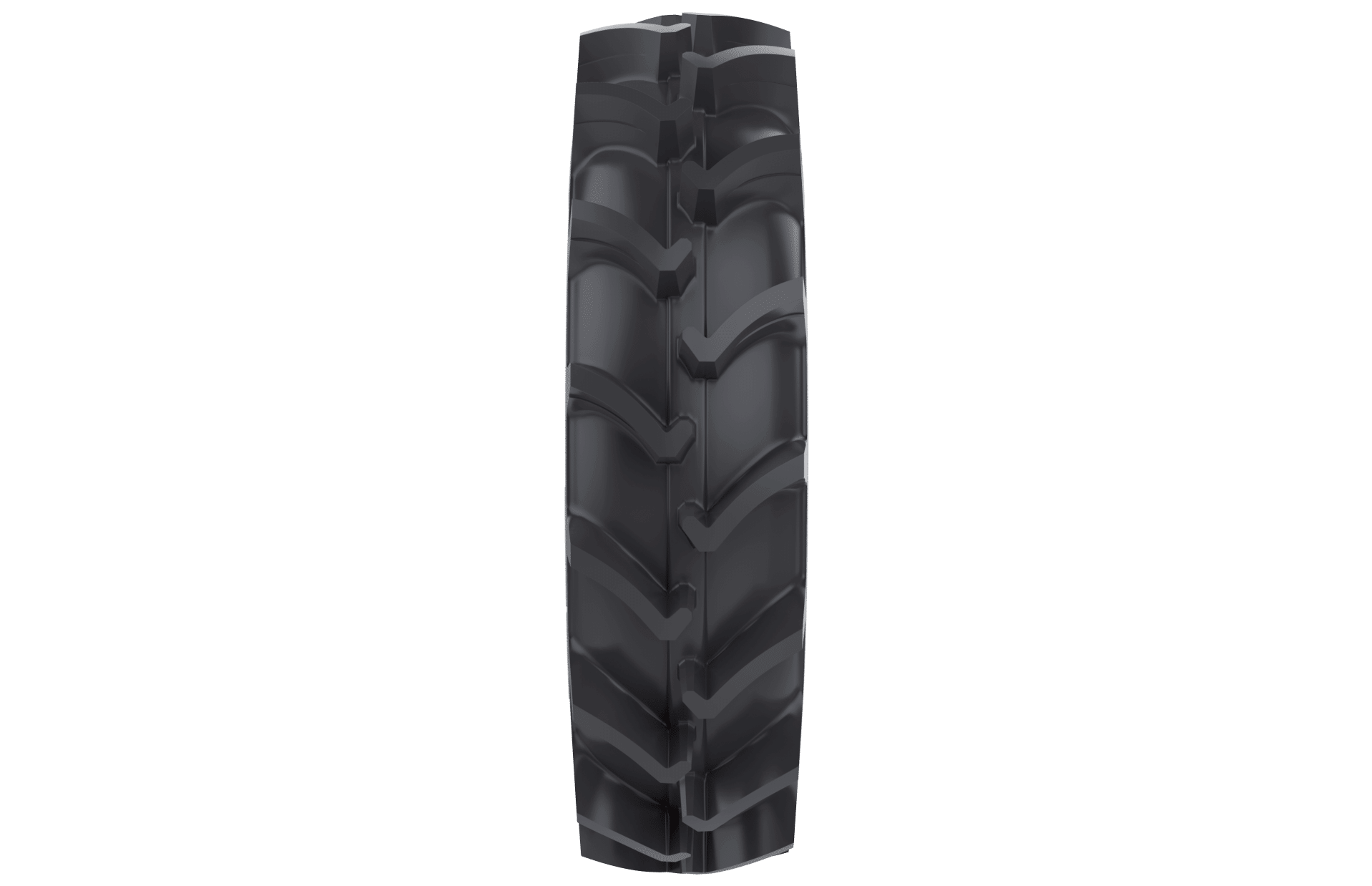

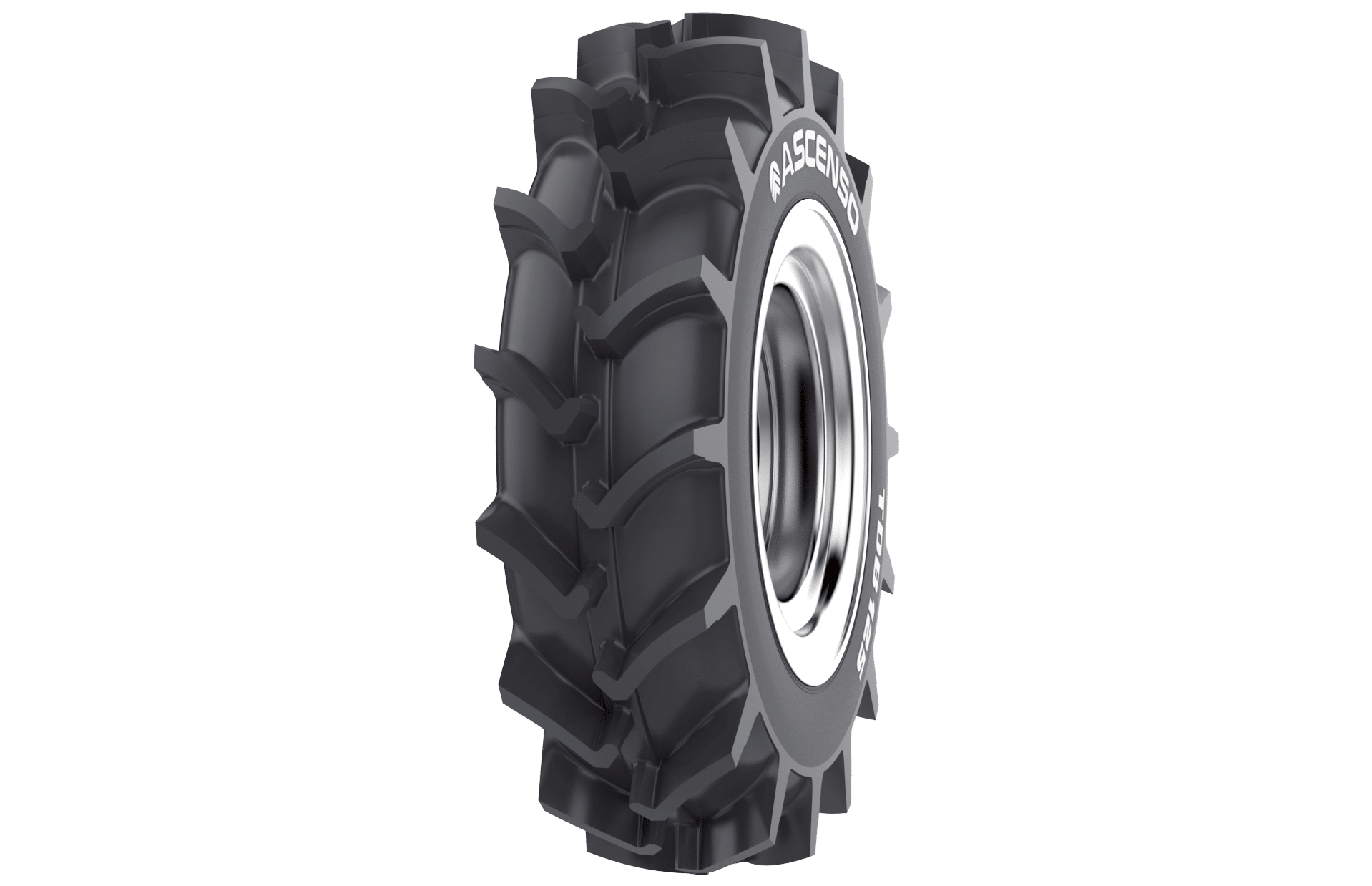

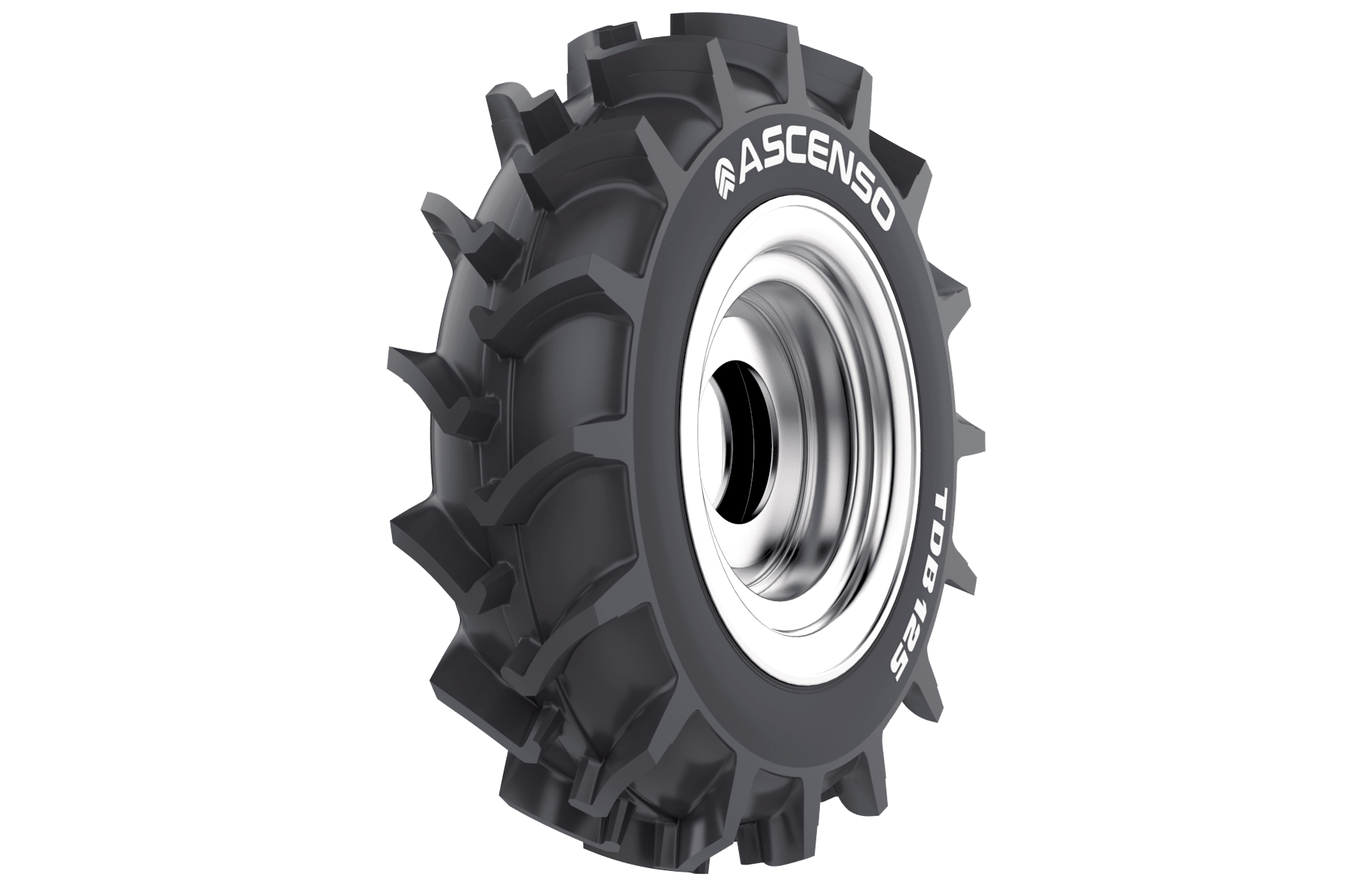

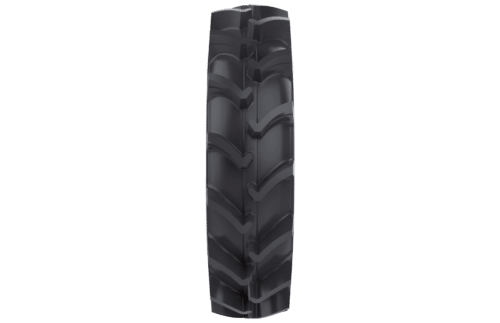

TDB 125
R-2
TT
Optimized Tread Design with Extra Deep Tread:
- Excellent traction in flooded soil and muddy, sticky soil conditions
- Longer Tire Life
Center Tie Bar
- Minimizes lug shuffling in operation
- Strong Lug Base
Optimized Lug Spacing (Void Ratio):
- Good lateral Traction
- Superior grip
- Outstanding self-cleaning properties due to exclusive tread geometry
High Inner Volumes:
- Ideal for wet & moist soil conditions
Superior Tread Compound:
- Minimizes wear/tear in operations
TDB 125
| SKU | Size | ALT Size | LI/SI | Ply/* | Type | Tread Depth (32 nds) | Preferred Rim | Wt (lbs) | OD inches | SW inches | RC inches | SLR inches | Max Load (lbs) | Psi | Max Speed (mph) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3001030132 | 12.4-24 | - | 117 A8 / 121 A6 | 8 | TT | 83 | W11 | 113 | 47 | 12 | 140 | 21 | 2830 | 32 | 25 |
| 3001030133 | 13.6-24 | - | 120 A8 / 123 A6 | 8 | TT | 88 | W11 | 133 | 49 | 14 | 147 | 22 | 3080 | 28 | 25 |
| 3001030134 | 14.9-24 | - | 124A8 / 128A6 | 8 | TT | 91 | W13 | 157 | 51 | 15 | 154 | 23 | 3520 | 26 | 25 |
| 3001030135 | 23.1-26 | - | 152A8 / 156A6 | 14 | TT | 107 | DW20B | 346 | 65 | 23 | 196 | 29 | 7810 | 28 | 25 |
| 3001030136 | 18.4-30 | - | 145A8 / 149A6 | 12 | TT | 102 | DW16A | 267 | 62 | 18 | 187 | 28 | 6380 | 32 | 25 |
| 3001030137 | 23.1-30 | - | 154 A8 / 157 A6 | 14 | TT | 107 | DW20B | 408 | 69 | 23 | 208 | 31 | 8250 | 28 | 25 |
| 3001030138 | 23.1-34 | - | 156 A8 / 160 A6 | 14 | TT | 107 | DW20B | 441 | 73 | 23 | 220 | 33 | 8800 | 28 | 25 |
