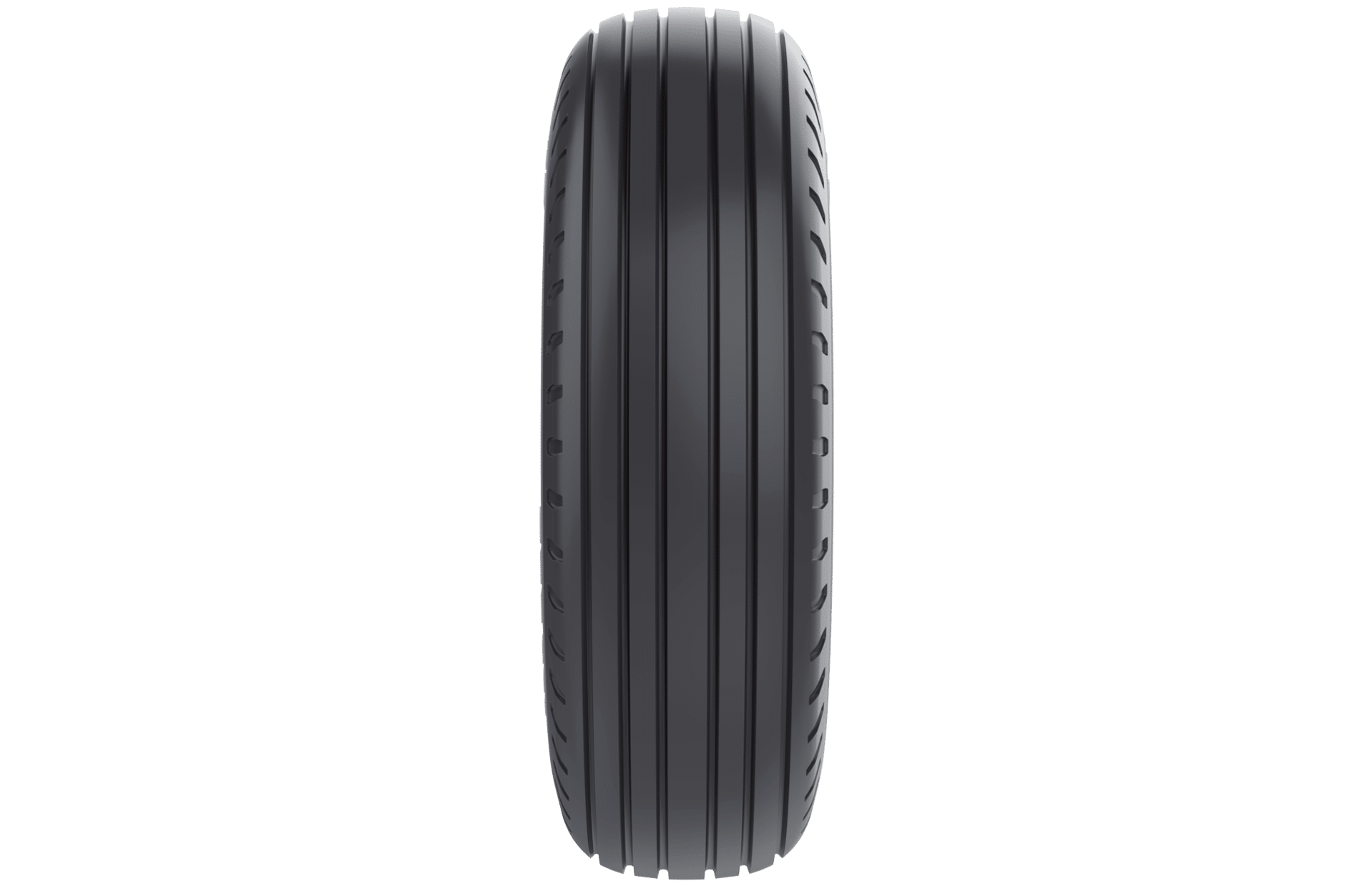

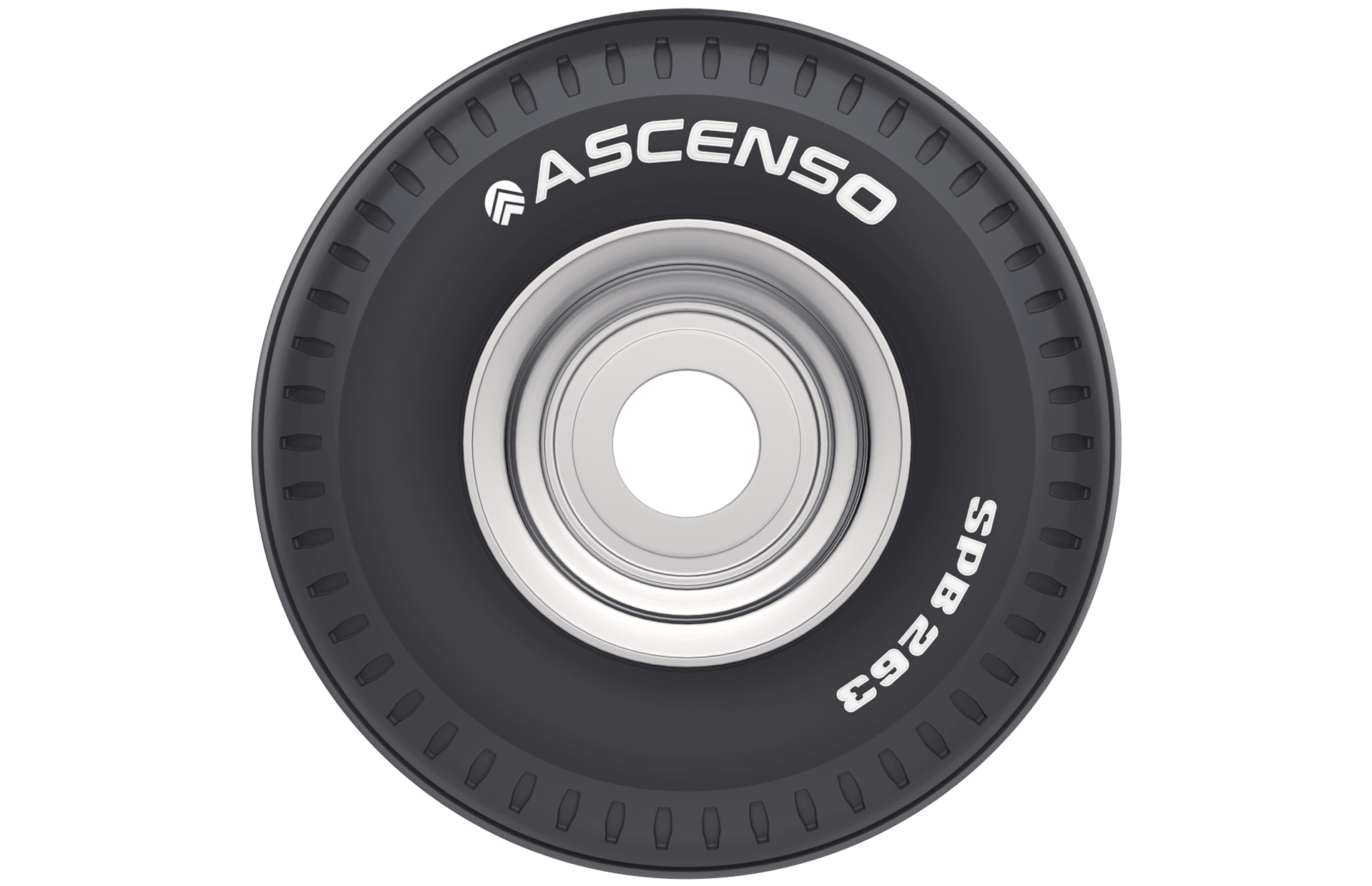

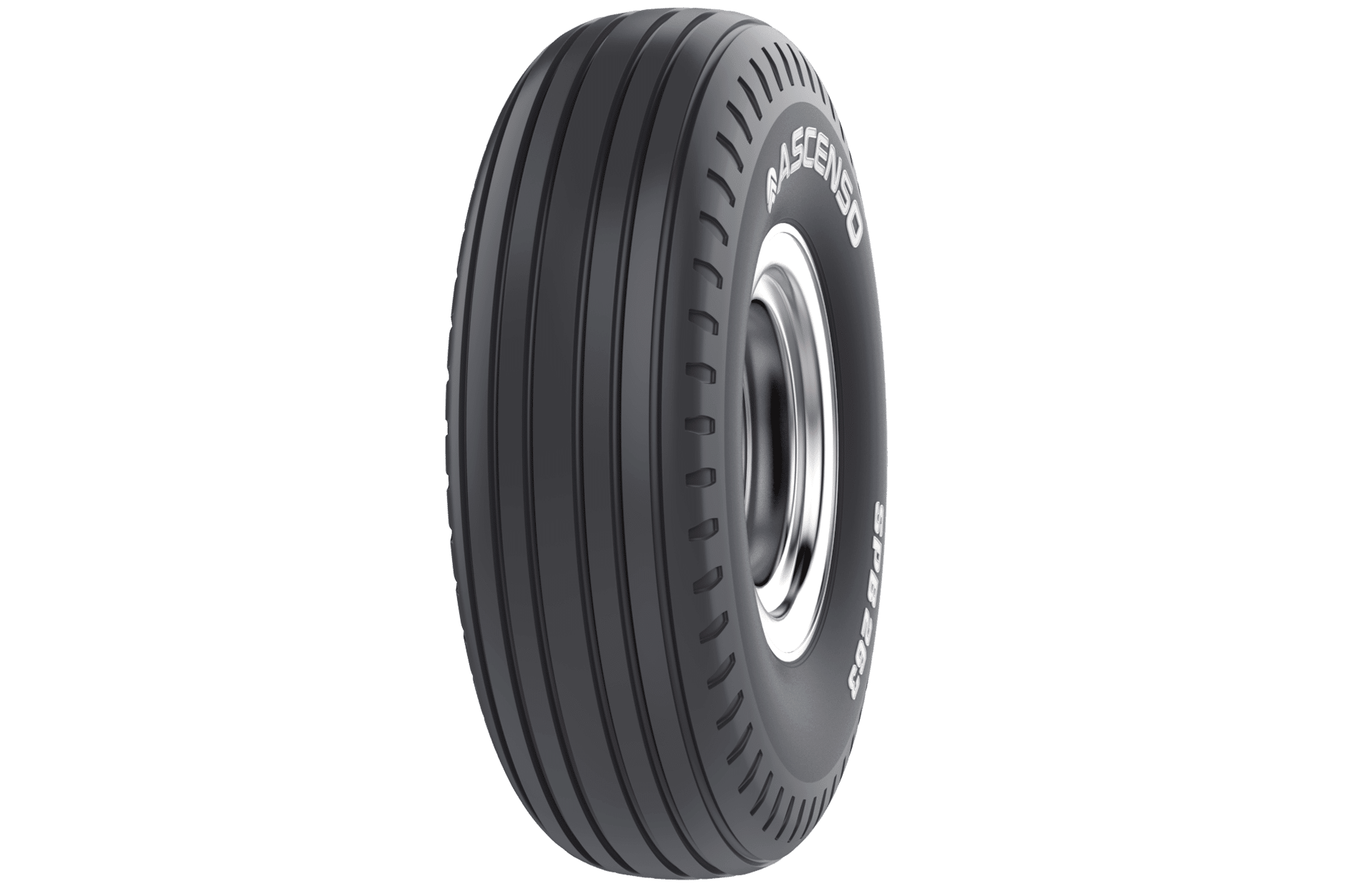

SPB 263
E-7
TL
Rib-pattern with wide footprint:
-
Ensures excellent flotation on sandy and loose terrains while delivering exceptional side-directional stability for smooth handling.
Reinforced nylon casing:
-
Enables stable low-pressure operation with enhanced puncture resistance—ideal for desert trucks, pavers, and trailer use
Low-profile tread geometry with self-cleaning shoulders:
-
Promotes even ground pressure, reduces track marks, and ensures uninterrupted operation across sand, soil, and asphalt spreads
SPB 263
| SKU Code | Size | ALT Size | LI/SI | Ply/* | Type | Tread Depth (32 nds) | Preferred Rim | Wt (lbs) | Unloaded Dimension | RC | SLR | Psi | Max Load at 6 mph (lbs) | Max Load at 40 mph (lbs) |
|
| SW | OD | ||||||||||||||
| mm | mm | mm | mm | ||||||||||||
| in | in | in | in | ||||||||||||
| 3003200003 | 14.00-20 | - | - | 16 | TL | 13 | 10 | 146.3 | 375 | 1219 | 3646 | 558 | 36 | 8800 | 5190 |
| 15 | 48 | 144 | 22 | ||||||||||||
| 3003200001 | 18.00-25 | - | - | 16 | TL | 20 | 10 | 336 | 463 | 1530 | 4576 | 687 | 36 | 11330 | 9630 |
| 19 | 61 | 181 | 27 | ||||||||||||
| 3003200002 | 21.00-25 | - | - | 28 | TL | 24 | 15 | 511 | 572 | 1665 | 4980 | 742 | 83 | 36300 | 20900 |
| 23 | 66 | 197 | 30 | ||||||||||||
| 3003200006 | 29.5-25 | - | - | 28 | TL | 28 | 25 | 869 | 749 | 1820 | 5443 | 806 | 36 | 26730 | 17050 |
| 30 | 72 | 215 | 32 | ||||||||||||
