BHB 316
R-4
TL
Construction
Bias
Machinery
Backhoe Loader
Application
Industrial & Construction

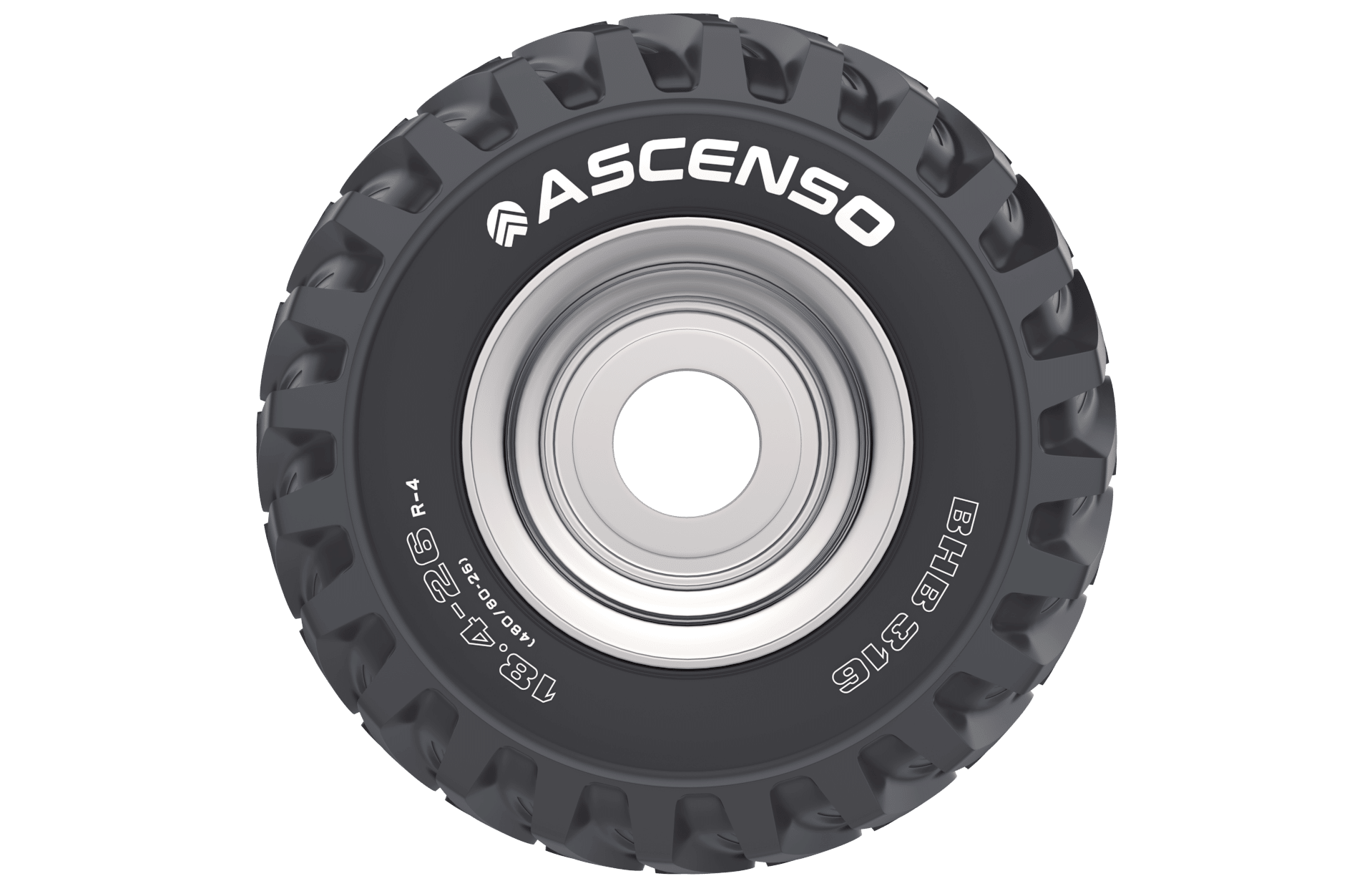

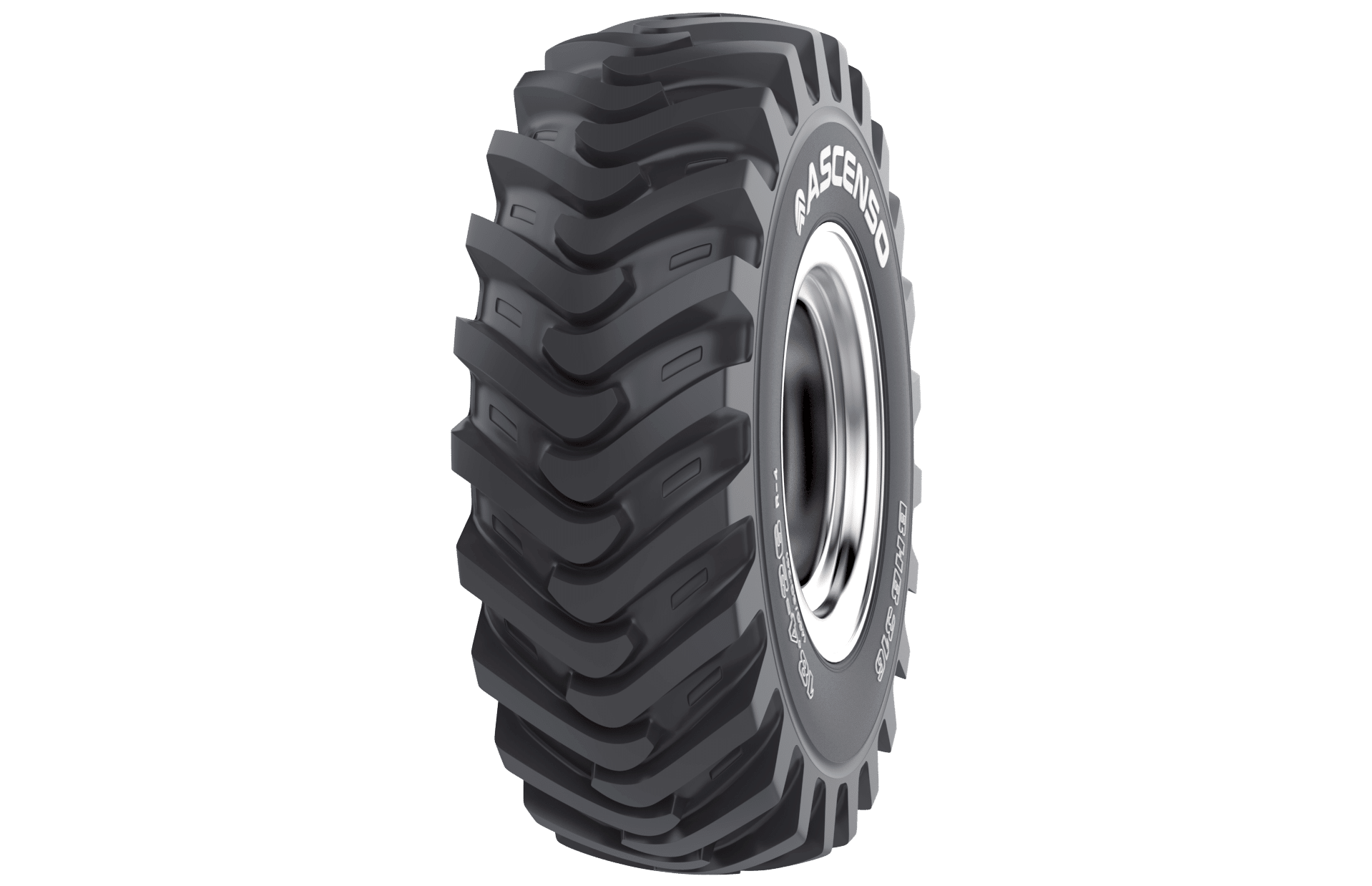

BHB 316 - Engineered for Backhoe Loader Dig & Load Operations
- Bias construction tire specially constructed for backhoe loaders

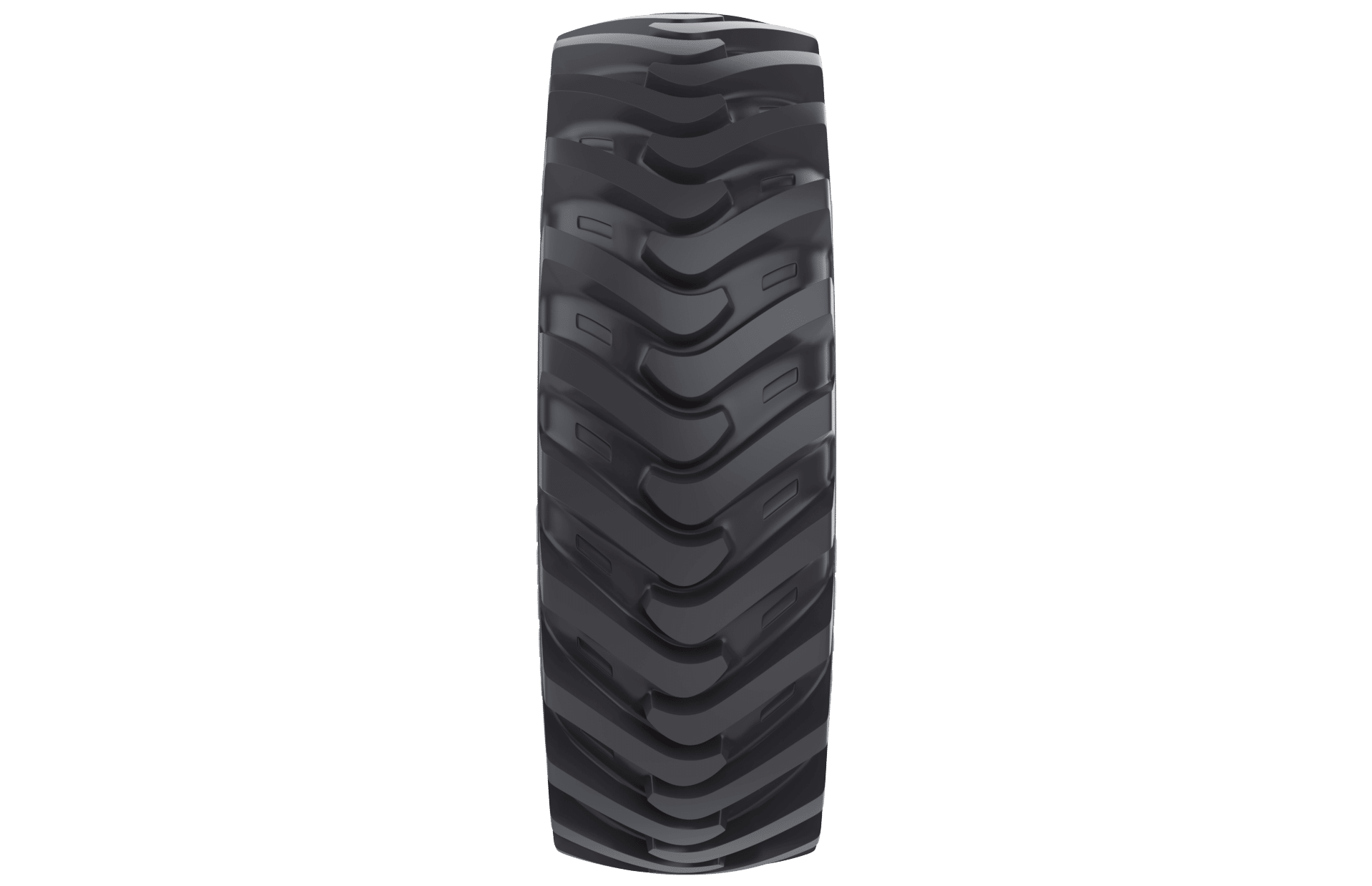

Reinforced Lug Tread Design
- Wide, robust lugs improve surface contact and withstand harsh digging and loading conditions, supporting consistent performance across mixed terrains.
Cut-, Chip- and Tear-Resistant Tread Compound
- Specially formulated compound resists cuts, chunks, and abrasion encountered at construction and agricultural sites, extending tire service life.
Deep Grooved, Self-Cleaning Tread Geometry
- Efficient groove layout enables quick evacuation of mud and debris, maintaining performance and reducing downtime in wet or loose underfoot conditions.
Strong Carcass Construction
- Durable casing structure enhances load-carrying capability and structural stability, ensuring reliability through repeated digging and loading cycles.
BHB 316
| SKU Code | Size | ALT Size | LI/SI | Ply/* | Type | Tread Depth (32 nds) | Preferred Rim | Wt (lbs) | Unloaded Dimension | RC | SLR | Psi | Max Load at 19 mph (lbs) | Max Load at 25 mph (lbs) |
|
| SW | OD | ||||||||||||||
| mm | mm | mm | mm | ||||||||||||
| in | in | in | in | ||||||||||||
| 3002020070 | 16.9-28 | - | 156 A8 | 14 | TL | 38 | W15L | 205.2 | 429 | 1410 | 4217 | 644 | 44 | 9160 | 8810 |
| 16.89 | 55.51 | 166.02 | 25.35 | ||||||||||||
| 3002020069 | 18.4-26 | - | 160 A8 | 16 | TL | 40 | DW16A | 238.7 | 467 | 1425 | 4262 | 646 | 46 | 10310 | 9910 |
| 18.39 | 56.1 | 167.8 | 25.43 | ||||||||||||
