IMR 142
IMP
TL
Construction
Radial
Machinery
Implement/Baler
Application
Agriculture

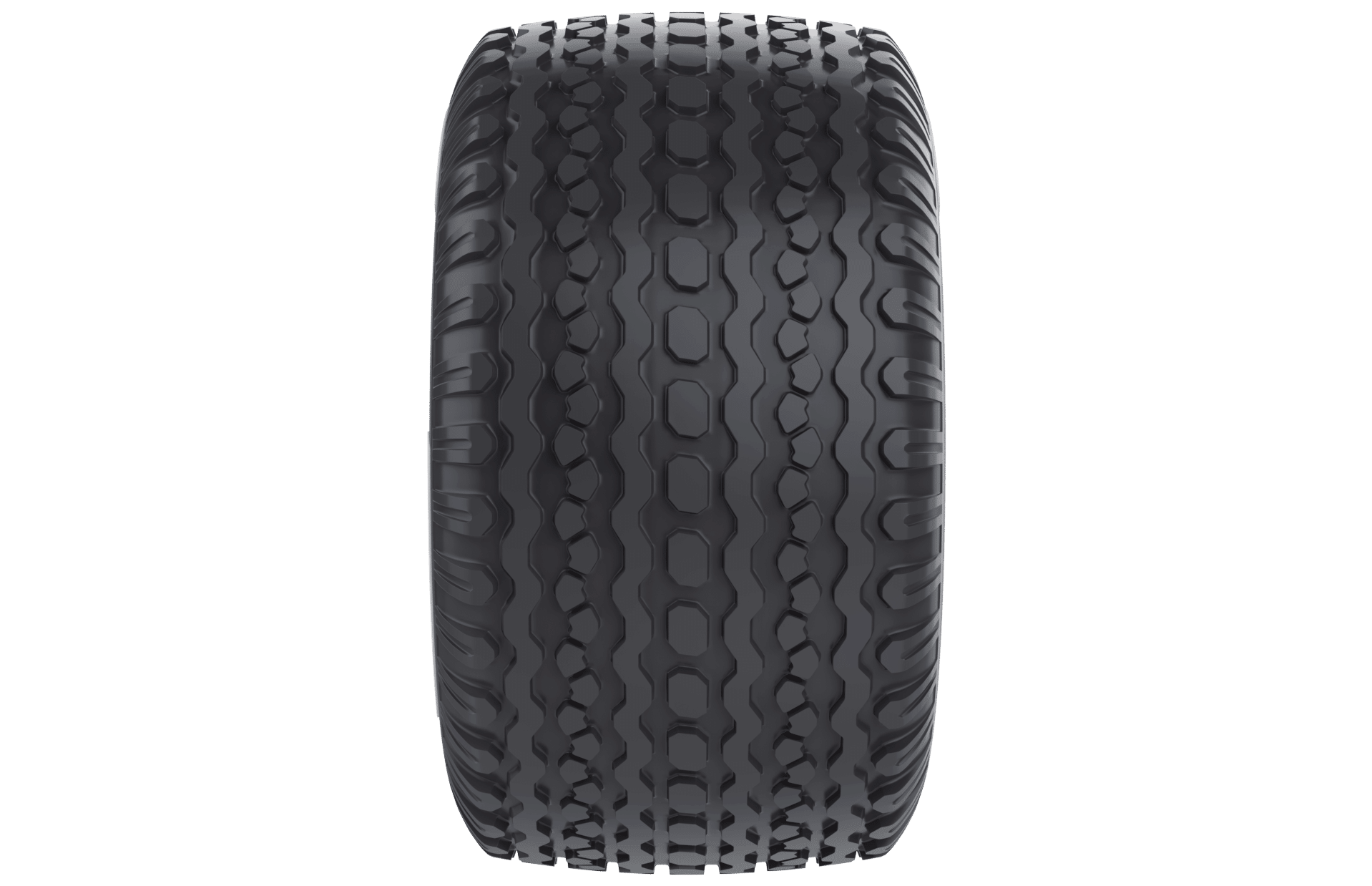

IMR 142 - Versatile Implement Tire for High-Speed Transport & Field Protection
- Radial agricultural tire specially designed for implements
Wide Footprint with Low-Pressure Design
- Distributes load evenly to minimize ground pressure, protecting grassland and soil during field and transport operations.
Balanced Tread Pattern for Multi-Surface Use
- Delivers stable and consistent performance across soil, grass, and paved roads, making it ideal for grain transport, silage, and fertilizer applications.
High-Speed Capability with Driving Comfort
- Designed for long-distance transport at higher operating speeds, ensuring smooth running and reduced operator fatigue.
Robust Construction for Heavy Implement Loads
- Strong casing supports high load requirements of trailers, grain baggers, and forage equipment while ensuring durability and service reliability.
IMR 142
| SKU Code | Size | ALT Size | LI/SI | Ply/* | Type | Tread Depth (32 nds) | Preferred Rim | Wt (lbs) | Unloaded Dimension | RC | SLR | Psi | Max Load at 6 mph (lbs) | Max Load at 40 mph (lbs) |
|
| SW | OD | ||||||||||||||
| mm | mm | mm | mm | ||||||||||||
| in | in | in | in | ||||||||||||
| 3001060025 | 500/50R17 SB | - | 149 D | - | TL | 12.6 | 16 | 119 | 503 | 932 | 2787 | 422 | 73 | 12890 | 7160 |
| 19.8 | 36.7 | 109.7 | 16.6 | ||||||||||||
