GEB 745
NHS
TT
Construction
Bias
Machinery
Baggage Tractor
Application
Material Handling

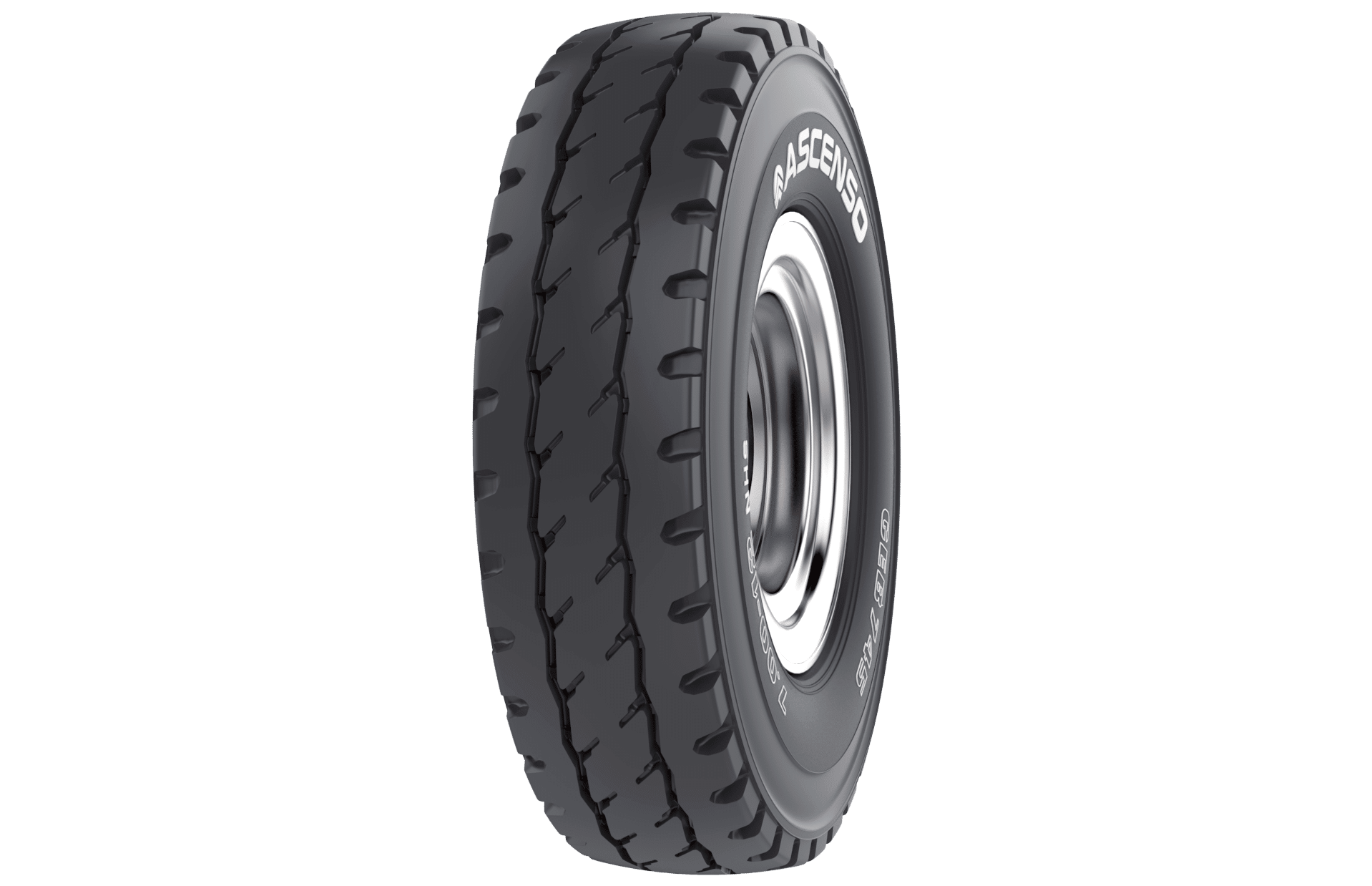

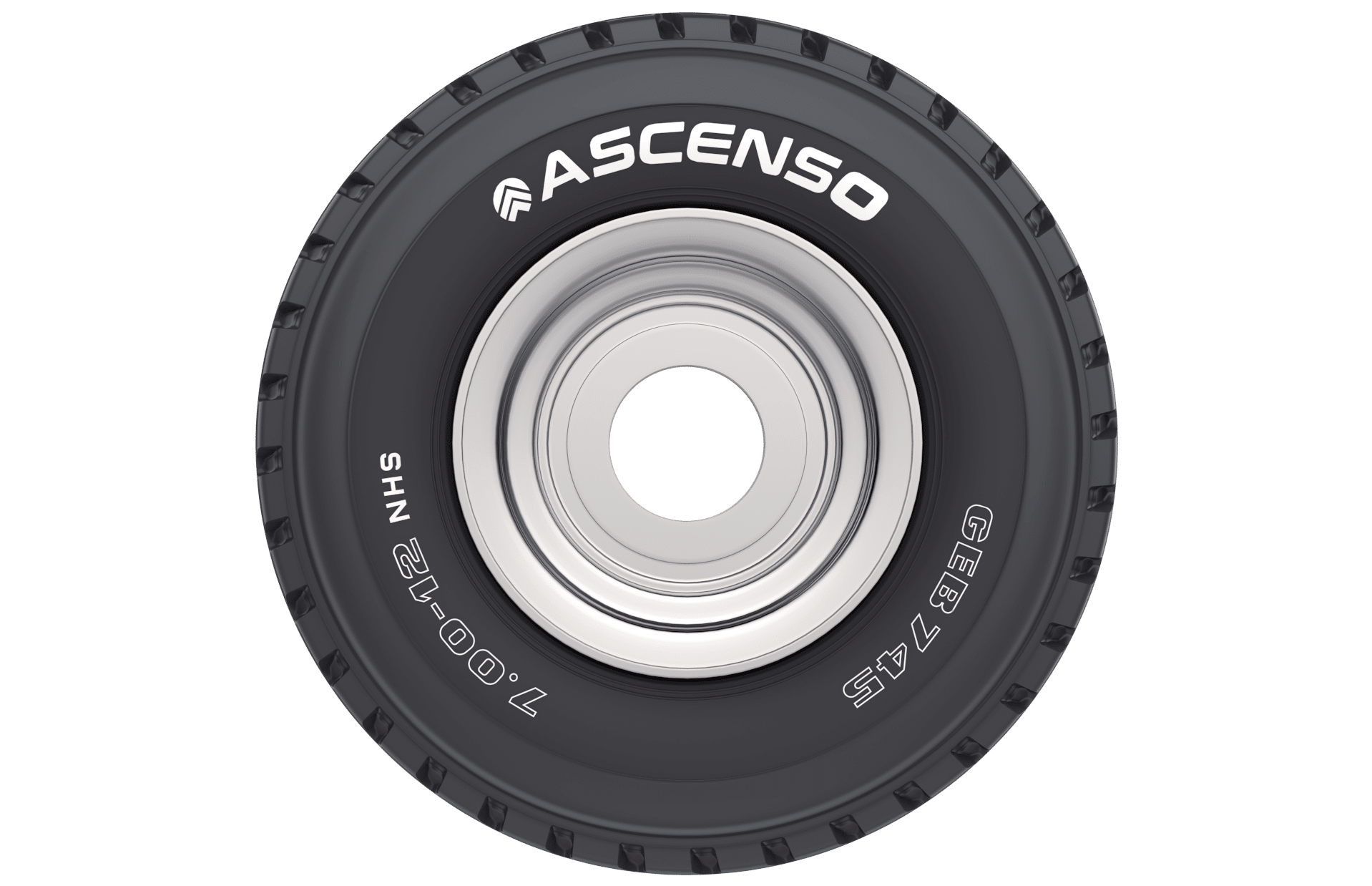

GEB 745 – Built for High-Duty Airport Ground Support Operations
- Bias material handling tire specially designed for baggage tractors.

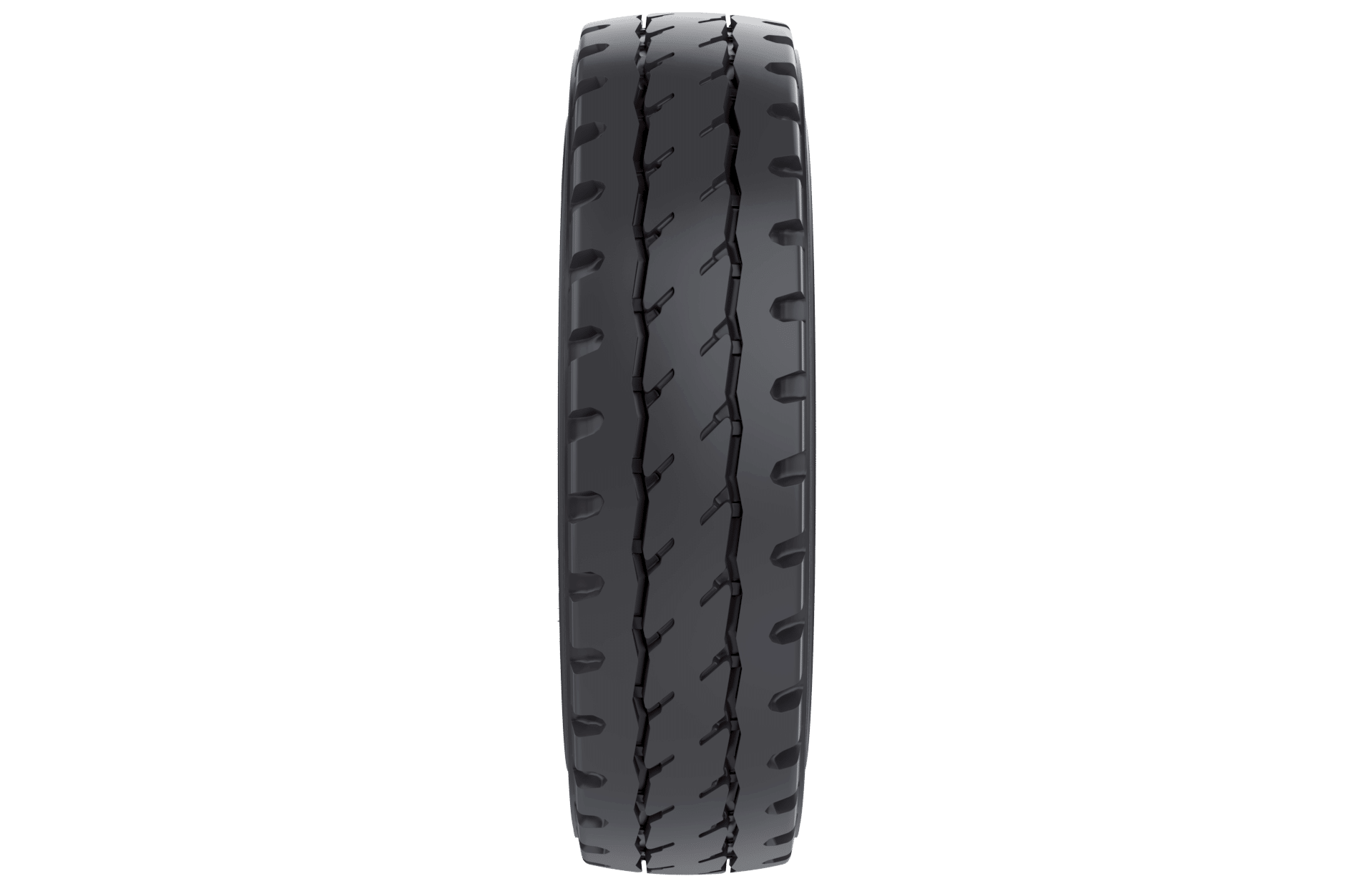

Optimized Rib Tread Design:
- Rib-based tread geometry ensures smooth rolling, directional stability, and reduced vibration during frequent start-stop movements on apron surfaces.
- Unique sipe design provide maximum grip on wet surface.
Heat-Resistant, Low Rolling Resistance Compound:
- Special compound performs reliably on high-temperature airport pavements while lowering rolling resistance to support energy efficiency and longer tire life.
Deep Tread with Thick Under-Tread:
- Enhanced tread depth and reinforced under-tread improve resistance to punctures and abrasion, increasing durability in demanding GSE duty cycles.
Wide Footprint with Reinforced Sidewall:
- Wider contact area and strengthened sidewalls provide excellent stability while towing loads, ensuring safe and controlled baggage handling operations.
GEB 745
| SKU Code | Size | ALT Size | LI/SI | Ply/* | Type | Tread Depth (32 nds) | Preferred Rim | Wt (lbs) | Unloaded Dimension | RC | SLR | Psi | Max Load at 19 mph (lbs) - Load | Max Load at 19 mph (lbs) - Steer |
|
| SW | OD | ||||||||||||||
| mm | mm | mm | mm | ||||||||||||
| in | in | in | in | ||||||||||||
| 3004090001 | 6.90-9 | - | 116 A6 | 10 | TT | 21 | 4.00E | 26.5 | 160 | 545 | 1630 | 244.8 | 123 | 3440 | 2750 |
| 6.3 | 21.46 | 64.17 | 9.64 | ||||||||||||
| 3004090002 | 6.50-10 | - | 127 A6 | 14 | TT | 21 | 5.00F | 30.1 | 178 | 597 | 1785.5 | 268.5 | 145 | 4820 | 3850 |
| 7.01 | 23.5 | 70.3 | 10.57 | ||||||||||||
